# Day 1 — Boolean Logic to Numbers: AND as min, OR as max 🧮

## 🚀 Welcome to My 30-Day Data Science Challenge!

Hey there! I'm **Sughosh P Dixit**, a Data Scientist at Oracle Finance, and I'm excited to share something special with you. After completing my first year as a Data Scientist, I've decided to give back to the community by publishing **30 articles over 30 days**, each covering a different Data Science concept that I use in my day-to-day work.

### Why This Challenge? 💡

During my journey at Oracle, I've learned that the most valuable insights often come from the practical application of mathematical concepts in real-world scenarios. These aren't just theoretical exercises—they're the building blocks of the models, algorithms, and systems that power modern data-driven decision making.

### What to Expect 📚

Each day, I'll dive deep into a specific concept, covering:
- **Mathematical foundations** with intuitive explanations
- **Real-world applications** from my experience at Oracle
- **Practical examples** you can implement immediately
- **Visual representations** to make complex ideas accessible

### The Journey Ahead 🗺️

From Boolean logic and fuzzy systems (today's topic) to advanced machine learning techniques, time series analysis, and everything in between—we'll explore the full spectrum of Data Science concepts that form the backbone of modern analytics.

### Join the Community! 🤝

- **Follow along**: Bookmark this series and check back daily
- **Engage**: Share your thoughts, questions, and implementations in the comments
- **Connect**: Follow me on [LinkedIn](https://linkedin.com/in/sughosh-dixit) for updates and behind-the-scenes content
- **Share**: Help others discover this series by sharing with your network

So grab your coffee ☕, get comfortable, and let's embark on this 30-day journey together. Whether you're a seasoned data scientist or just starting out, there's something here for everyone!

<div style={{textAlign: 'center', margin: '2rem 0'}}>
  <div id="lottie-challenge" style={{width: '200px', height: '200px', margin: '0 auto'}}></div>
  <p style={{fontStyle: 'italic', color: '#666', marginTop: '1rem'}}>Let's make Data Science accessible, one concept at a time! 🚀</p>
</div>

---

**TL;DR:** We can extend Boolean rules to graded (0–1) "degrees of truth" by replacing AND with the minimum operator and OR with the maximum operator. This choice—known as the **Gödel t‑norm/t‑conorm**—preserves the algebraic properties we rely on in logic (commutativity, associativity, monotonicity, identity elements), remains conservative and interpretable, and lets us evaluate complex rule expressions on numeric features.

![3D Surfaces](/DS-1/3d_surfaces.png)

## Why go beyond 0 or 1? 🤔

Real‑world rules often have shades of satisfaction. For example, two numeric conditions might be "mostly satisfied" rather than strictly true or false. Moving from Boolean {0,1} to real‑valued [0,1] degrees of truth allows:

* ✅ Graded rule satisfaction ("0.7 satisfied").
* ✅ Smooth aggregation across multiple conditions.
* ✅ Monotone behavior: tightening any input shouldn't increase the rule score.

The central question: how should we generalize AND and OR for values in [0,1]?

## T‑norms and T‑conorms at a glance 📐

A t‑norm T generalizes logical AND to [0,1], and a t‑conorm (or s‑norm) S generalizes logical OR. Desiderata for AND‑like T and OR‑like S include:

**For a t‑norm T:**
* 🔄 Commutativity: `T(x,y) = T(y,x)`
* 🔗 Associativity: `T(x,T(y,z)) = T(T(x,y),z)`
* 📈 Monotonicity: if `x ≤ x′` and `y ≤ y′` then `T(x,y) ≤ T(x′,y′)`
* 🎯 Neutral element 1: `T(x,1) = x`

**For a t‑conorm S:**
* 🔄 Commutativity, associativity, monotonicity
* 🎯 Neutral element 0: `S(x,0) = x`

Many pairs (T,S) exist. Today's focus is the Gödel pair:

* 🟢 Gödel t‑norm (AND): `T(x,y) = min(x,y)`
* 🔵 Gödel t‑conorm (OR): `S(x,y) = max(x,y)`

These are simple, conservative, and highly interpretable.

<div style={{textAlign: 'center', margin: '2rem 0'}}>
  <div id="lottie-math" style={{width: '150px', height: '150px', margin: '0 auto'}}></div>
  <p style={{fontStyle: 'italic', color: '#666', marginTop: '1rem'}}>Mathematics is the language of Data Science 📊</p>
</div>

![Truth Table Extension](/DS-1/t-norm.png)

## Gödel AND = min, OR = max ✨

Define, for `x,y ∈ [0,1]`:

* AND: `x ∧ y := min(x,y)`
* OR: `x ∨ y := max(x,y)`

Interpretation: the degree to which both conditions hold is limited by the weaker one; the degree to which at least one holds is governed by the stronger one.

**Examples:**

* AND: min(0.7, 0.4) = 0.4
* OR: max(0.7, 0.4) = 0.7
* Three inputs: `x ∧ y ∧ z = min(x,y,z)`; `x ∨ y ∨ z = max(x,y,z)`

**Boundary behavior:**

* `min(x,1) = x`; `max(x,0) = x`
* `min(x,0) = 0`; `max(x,1) = 1`

**Idempotence:**

* `min(x,x) = x`; `max(x,x) = x`

## Why this is a good generalization of logic 💡

* ✅ If `x,y ∈ {0,1}`, min/max reduce to classical AND/OR truth tables.
* ✅ Monotonicity: increasing any input cannot decrease OR or increase AND.
* ✅ Conservatism: a weak conjunctive input (near 0) keeps the AND low, as desired.
* ✅ Interpretability: min/max are intuitive aggregators for "all conditions hold" / "at least one holds".

## Quick proofs of key properties 📝

Below, write **`T(x,y) = min(x,y)`** and **`S(x,y) = max(x,y)`**. All `x,y,z ∈ [0,1]`.

**1️⃣ Commutativity** 🔄
```
min(x,y) = min(y,x)
```
(symmetric definition), similarly for max. ✓

**2️⃣ Associativity** 🔗
```
min(x, min(y,z)) = min(min(x,y), z)
```
Because min is the least element among `{x,y,z}`, either side is the minimum of the set. Same for max. ✓

**3️⃣ Monotonicity** 📈
If `x ≤ x′` and `y ≤ y′`, then `min(x,y) ≤ min(x′,y′)`.

💡 **Proof:** The minimum cannot increase more than the larger pairwise components; similarly for max.

**4️⃣ Neutral elements** 🎯
```
min(x,1) = x
```
(1 never lowers a minimum)

```
max(x,0) = x
```
(0 never lifts a maximum)

**5️⃣ Absorption** 🔁
```
min(x, max(x,y)) = x
max(x, min(x,y)) = x
```
(`x` always "absorbs" itself.) ✓

**6️⃣ Distributivity (over each other)** 🎲
On a totally ordered set like the reals in `[0,1]`, min and max distribute over each other:

```
min(x, max(y,z)) = max(min(x,y), min(x,z))
max(x, min(y,z)) = min(max(x,y), max(x,z))
```

These are classic lattice identities for totally ordered sets. ✓


> **Note on "counterexamples":** min and max do distribute over each other on a total order. Distributivity fails if you mix different t‑norms/t‑conorms (e.g., product t‑norm with max). See the exercises for a concrete counterexample in that setting.

## Visual intuition 🎨

* 3D surface of `f(x,y)=min(x,y)`: a saddle‑like surface that follows the lower of the two planes `z=x` and `z=y`.
* 3D surface of `g(x,y)=max(x,y)`: the mirror image that follows the higher of `z=x` and `z=y`.
* Color maps (`x` on horizontal, `y` on vertical): min is dark (low) whenever either axis is low; max is bright (high) whenever either axis is high.

![Heatmaps](/DS-1/heatmaps.png)

These visuals reinforce how AND is bottlenecked by the weakest input, and OR is lifted by the strongest.

<div style={{textAlign: 'center', margin: '2rem 0'}}>
  <div id="lottie-visualization" style={{width: '180px', height: '180px', margin: '0 auto'}}></div>
  <p style={{fontStyle: 'italic', color: '#666', marginTop: '1rem'}}>Visualizing complex concepts makes them click! 🎯</p>
</div>

## Worked examples 💼


**1️⃣ Two‑feature rule: "(A AND B) OR C"** 🔀
Using min/max: `max(min(A,B), C)`

**Example 1:** If A=0.6, B=0.8, C=0.55
- `min(A,B)` = 0.6
- OR with C: `max(0.6, 0.55)` = **0.6** ✓

**Example 2:** If A=0.6, B=0.2, C=0.55
- `min(A,B)` = 0.2
- OR with C: `max(0.2, 0.55)` = **0.55** ✓

**2️⃣ Three‑way conjunction: "A AND B AND C"** 🔗
Using: `min(A,B,C)`

* **Case 1:** (0.7, 0.65, 0.9) → **0.65** ✓
* **Case 2:** (0.7, 0.65, 0.1) → **0.1** ⚠️ (the weakest link dominates!)

💡 The key insight: AND is **bottlenecked** by the weakest input; OR is **lifted** by the strongest input.

## How this connects to rule evaluation in practice 🔗

When you write a rule expression (e.g., "feature1 AND (feature2 OR feature3)"), a numeric semantics can evaluate it on scaled numeric inputs. Interpreting AND as min and OR as max makes the rule:

* 📊 Monotone: tightening a threshold for any component cannot falsely inflate the rule score.
* 🎯 Interpretable: the final score is always bounded by the weakest conjunct and supported by the strongest disjunct.
* 🔧 Composable: nested AND/OR become nested min/max, which is associative and easy to compute.

In other words, "logical structure" becomes "min/max algebra," letting you score complex rules consistently on real numbers.

## Common alternatives (and why we started with min/max) 🆚

Other popular t‑norms and t‑conorms:

* Product t‑norm: `T(x,y)=x·y`; Probabilistic sum t‑conorm: `S(x,y)=x+y−xy`
* Łukasiewicz t‑norm: `T(x,y)=max(0, x+y−1)`; t‑conorm: `S(x,y)=min(1, x+y)`

These can be smoother or more conservative/aggressive, but min/max are idempotent (`T(x,x)=x`), preserve ordering cleanly, and exactly recover Boolean logic on {0,1}. They're a standard, robust starting point.

## Exercises 📚

**1️⃣ Prove the basics** ✏️
* Show that min and max satisfy commutativity, associativity, and monotonicity on [0,1].
* Show identity elements: `min(x,1)=x` and `max(x,0)=x`.
* Show absorption: `min(x, max(x,y)) = x` and `max(x, min(x,y)) = x`.

💡 Hints: Use case splits (`x≤y` vs `y≤x`) and the definition of min/max.

**2️⃣ Distributivity in a total order** 📏
* Prove that for all `x,y,z`,

  ```
  min(x, max(y,z)) = max(min(x,y), min(x,z))
  max(x, min(y,z)) = min(max(x,y), max(x,z))
  ```

💡 Hint: Reduce to sorted triples or use lattice theory for totally ordered sets.

**3️⃣ A counterexample for mixed operators (bonus)** 🧩
* Show that product t‑norm does not distribute over max. Find `x,y,z ∈ [0,1]` such that

  ```
  x·max(y,z) ≠ max(x·y, x·z)
  ```

📝 Example: take `x=0.6`, `y=0.2`, `z=0.9`.
- Left: `0.6·max(0.2,0.9)=0.6·0.9=0.54`
- Right: `max(0.6·0.2, 0.6·0.9)=max(0.12, 0.54)=0.54` (this one happens to tie; try `x=0.3`, `y=0.9`, `z=0.4`)

💡 Try several triplets until you find strict inequality; in general the equality need not hold.

**4️⃣ Interpreting outputs** 🔍
Given A=0.7, B=0.3, C=0.6, compute the rule score for "(A AND B) OR C" under:

* 🟢 Gödel (min/max)
* 🟡 Product t‑norm (AND) + probabilistic sum (OR)

💭 Compare and discuss the differences.

## Closing 🎯

Replacing AND with min and OR with max gives a mathematically principled way to score rule satisfaction on real data. It preserves the essential logic laws, keeps monotonic behavior, and is easy to visualize and explain—an ideal foundation for building more sophisticated, quantitative rule systems over the rest of this series.

---

<div style={{textAlign: 'center', margin: '3rem 0', padding: '2rem', background: 'linear-gradient(135deg, #667eea 0%, #764ba2 100%)', borderRadius: '15px', color: 'white'}}>
  <div id="lottie-celebration" style={{width: '200px', height: '200px', margin: '0 auto'}}></div>
  <h3 style={{margin: '1rem 0', color: 'white'}}>Day 1 Complete! 🎉</h3>
  <p style={{margin: 0, fontSize: '1.1rem', opacity: 0.9}}>*This is Day 1 of my 30-day challenge documenting my Data Science journey at Oracle! Stay tuned for more insights and mathematical foundations of data science. 🚀*</p>
  <div style={{marginTop: '1.5rem'}}>
    <span style={{background: 'rgba(255,255,255,0.2)', padding: '0.5rem 1rem', borderRadius: '25px', fontSize: '0.9rem'}}>Next: Day 2 - Coming Tomorrow!</span>
  </div>
</div>


Extending Boolean rules to graded (0–1) degrees of truth by replacing AND with the minimum operator and OR with the maximum operator using Gödel t-norms.

Day 1 — Boolean Logic to Numbers: AND as min, OR as max


# Day 2 — Expressions as Algebra: Tokens, Precedence & Postfix (RPN) 🧮

<div style={{textAlign: 'center', margin: '2rem 0'}}>
  <div id="lottie-parsing" style={{width: '200px', height: '200px', margin: '0 auto'}}></div>
  <p style={{fontStyle: 'italic', color: '#666', marginTop: '1rem'}}>Teaching computers to understand expressions! 🚀</p>
</div>

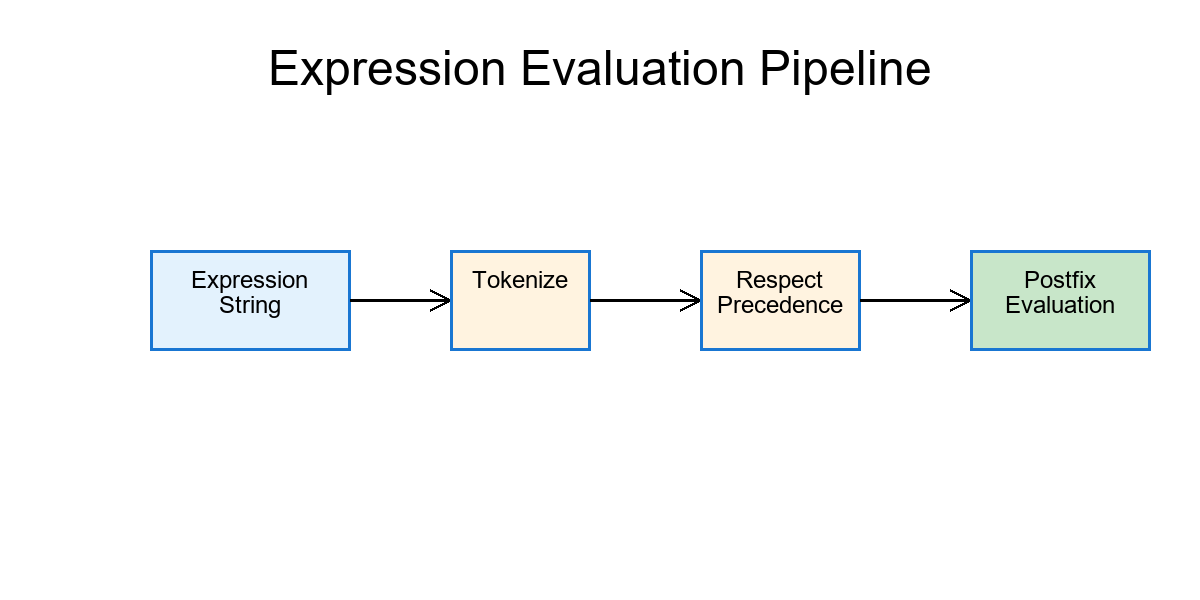

## 🚀 The Big Idea

Humans read rules with ease. Computers need structure.

When we write something like 👇

```
score >= 0.85 and (stability > 0.9 or flag == 0)
```

…it looks natural to us but computers see a tangle of symbols. To evaluate this reliably, we teach machines three steps:

1️⃣ **Tokenize** – split text into meanings (words, numbers, operators).

2️⃣ **Respect precedence** – know which operators bind stronger.

3️⃣ **Translate to postfix (RPN)** – remove parentheses so evaluation is fast and unambiguous.

✨ This gives us rules that are consistent, explainable, and lightning-fast to evaluate.

## 💡 Where This Appears in Data Science

⚙️ **Rule-based labels & weak supervision** – define labels from heuristics in a clear, reproducible way.

👥 **Cohort & segment definitions** – select groups like "(active and high_quality) or (new_user and opted_in)".

🧪 **Data-quality & feature checks** – guard pipelines with rules like "not null" or value ranges.

📈 **Model monitoring & release criteria** – e.g. "(precision ≥ X and recall ≥ Y) or (lift ≥ Z)".

🧱 **Feature-engineering DSLs** – describe derived features safely and consistently.

🧾 **Governance & auditability** – align rule text with its computation for traceable results.

⚡ **Performance & scalability** – postfix evaluation runs in O(n) with a tiny stack.

## 🪄 Step 1 — Tokenize the Rule

Let's start with:

```
(score >= 0.85 and stability > 0.9) or (flag == 0)
```

Break it into typed pieces:

🆔 **IDs:** score, stability, flag

🔢 **Numbers:** 0.85, 0.9, 0

⚙️ **Operators:** >=, >, ==, and, or

🧩 **Parentheses:** (, )

**Token stream:**

```
( score >= 0.85 and stability > 0.9 ) or ( flag == 0 )
```

![Tokenization Example](/DS-2/tokenization_example.png)

## 📊 Step 2 — Operator Precedence 🎚️

A consistent order keeps rules predictable (high → low):

1️⃣ `* /`
2️⃣ `+ -`
3️⃣ Comparisons: `>= <= > < == !=`
4️⃣ `not` (unary)
5️⃣ `and`
6️⃣ `or`

🪶 **Parentheses always override everything.** Among equals, evaluate left to right.

![Precedence Ladder](/DS-2/precedence_ladder.png)

## 🔁 Step 3 — Infix → Postfix (RPN) 🚦

Using the shunting-yard algorithm:

- Send values straight to output 🟩
- Push operators on a stack 🗂️
- Pop higher/equal precedence ops before pushing a new one ↕️
- Handle parentheses to group logic `()` 🎯
- Pop everything left at the end 📤

✅ Our rule becomes:

```
score 0.85 >= stability 0.9 > and flag 0 == or
```

Same logic, zero ambiguity. Pure clarity.

![Infix to Postfix Conversion](/DS-2/infix_postfix.png)

<div style={{textAlign: 'center', margin: '2rem 0'}}>
  <div id="lottie-algorithm" style={{width: '180px', height: '180px', margin: '0 auto'}}></div>
  <p style={{fontStyle: 'italic', color: '#666', marginTop: '1rem'}}>Algorithms make it all work! 🧮</p>
</div>

## 🧰 How to Evaluate Postfix

Use a simple stack:

1️⃣ Read left → right.
2️⃣ Push values onto stack.
3️⃣ When you see an operator, pop the needed inputs, apply it, and push the result.
4️⃣ Return the final value (1 for True, 0 for False).

🧮 **AND/OR** use Boolean logic on those 1s and 0s.

## 🧩 Worked Example 1 — Full Evaluation

**Postfix:**

```
score 0.85 >= stability 0.9 > and flag 0 == or
```

| Row | score | stability | flag | Result | Explanation |
|-----|-------|-----------|------|--------|-------------|
| A | 0.86 | 0.91 | 1 | ✅ True | 1 ∧ 1 ∨ 0 = 1 |
| B | 0.86 | 0.70 | 0 | ✅ True | 1 ∧ 0 ∨ 1 = 1 |
| C | 0.70 | 0.70 | 1 | ❌ False | 0 ∧ 0 ∨ 0 = 0 |

## ⚖️ Worked Example 2 — Why Precedence Matters

Without parentheses:

```
score >= 0.85 and stability > 0.9 or flag == 0
```

Standard ladder → still evaluates as:

```
(score >= 0.85 and stability > 0.9) or (flag == 0)
```

💥 **Wrong precedence** (e.g., "or" before "and") flips results entirely!

🎯 **Always follow the ladder** —or use explicit brackets.

## 🧮 Worked Example 3 — With Arithmetic

**Infix:**

```
(feature_x / feature_y > 2) and (z_score + bonus >= 3)
```

**Postfix:**

```
feature_x feature_y / 2 > z_score bonus + 3 >= and
```

| Row | feature_x | feature_y | z_score | bonus | Result |
|-----|-----------|-----------|---------|-------|--------|
| 1 | 10 | 4 | 2.1 | 1.0 | ✅ True |
| 2 | 5 | 4 | 2.5 | 0.2 | ❌ False |

🧯 **Tip:** guard against division by zero in feature_y.

## 🚫 Worked Example 4 — Adding Unary not

**Infix:**

```
(not drift) and (quality >= 0.95 or coverage >= 0.98)
```

**Postfix:**

```
drift not quality 0.95 >= coverage 0.98 >= or and
```

| Row | drift | quality | coverage | Result |
|-----|-------|---------|----------|--------|
| 1 | 1 | 0.97 | 0.90 | ❌ False |
| 2 | 0 | 0.93 | 0.99 | ✅ True |

## 🏁 What You Gain

✅ **Consistency** – same rule = same result everywhere.

🧠 **Simplicity** – easy to evaluate and debug.

⚡ **Speed** – O(n) evaluation with tiny memory footprint.

🔍 **Clarity** – no hidden precedence surprises.

## 🧭 Takeaway

Turning rule strings into tokens, honoring a clear precedence order, and evaluating postfix makes your logic solid, predictable, and explainable.

A small engineering habit that scales beautifully from data validation to full-blown rule engines 💪

---

<div style={{textAlign: 'center', margin: '3rem 0', padding: '2rem', background: 'linear-gradient(135deg, #667eea 0%, #764ba2 100%)', borderRadius: '15px', color: 'white'}}>
  <div id="lottie-celebration" style={{width: '200px', height: '200px', margin: '0 auto'}}></div>
  <h3 style={{margin: '1rem 0', color: 'white'}}>Day 2 Complete! 🎉</h3>
  <p style={{margin: 0, fontSize: '1.1rem', opacity: 0.9}}>*This is Day 2 of my 30-day challenge documenting my Data Science journey at Oracle! Stay tuned for more insights and mathematical foundations of data science. 🚀*</p>
  <div style={{marginTop: '1.5rem'}}>
    <span style={{background: 'rgba(255,255,255,0.2)', padding: '0.5rem 1rem', borderRadius: '25px', fontSize: '0.9rem'}}>Next: Day 3 - Coming Tomorrow!</span>
  </div>
</div>



How to teach computers to read and evaluate expressions step by step — by tokenizing text, enforcing operator precedence, and converting rules to postfix (RPN) form for speed, clarity and consistency.

Navigation

Topics

Following

Data Science

Day 1 — Boolean Logic to Numbers: AND as min, OR as max

Day 2 — Expressions as Algebra: Tokens, Precedence, and Infix → Postfix
